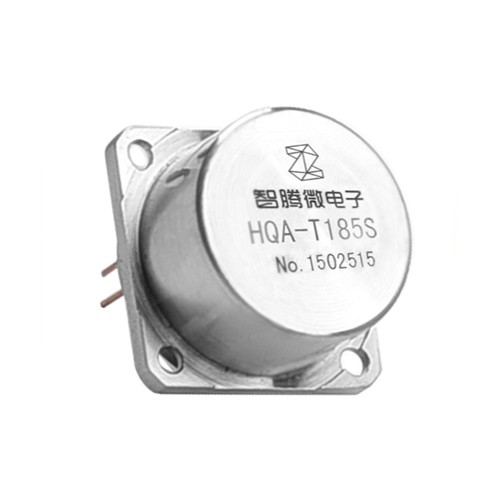

ZITN 135°C/160°C /185°C HQA-T Series High-Temperature Quartz Flexible Accelerometer is a uniaxial torque feedback accelerometer. It detects the external acceleration signal of the mass, which is then demodulated and amplified by the servo circuit, outputting a current signal proportional to the acceleration signal.
ZITN 135°C/160°C /185°C HQA-T Series High-Temperature Quartz Flexible Accelerometer is widely used in high-precision navigation systems for aerospace, oil drilling inclinometry systems, and geological exploration systems.
Product Features
- High temperature resistance;
- Resistance to vibration and impact;
- Small size and light weight;
- Wide-voltage power supply (low power consumption);
- Analog electrical signal output;
- Customizable size according to requirements.
Key Technical Parameter Indicators
|
Serial Number |
Item |
HQA-T135 |
HQA-T160 |
HQA-T185 |
|
1 |
Measurement Range (g) |
±30g |
±30g |
±30g |
|
2 |
Threshold (g) |
1×10⁻⁵g |
1×10⁻⁵g |
1×10⁻⁵g |
|
3 |
Bias (K0) |
<±15mg |
<±15mg |
<±25mg |
|
4 |
Temperature Drift of Bias (K0) |
<120μg/℃ |
<120μg/℃ |
<120μg/℃ |
|
5 |
Scale Factor (K1) |
2.4mA/g±10% |
2.4mA/g±10% |
2.4mA/g±10% |
|
6 |
Temperature Drift of Scale Factor (K1) |
<60ppm/℃ |
<60ppm/℃ |
<60ppm/℃ |
|
7 |
Comprehensive Repeatability of K0&K1 (Note 1) |
<2mg |
<2mg |
<3mg |
|
8 |
Misalignment Angle |
<1mrad |
<1mrad |
<1mrad |
|
9 |
Bandwidth |
>300Hz |
>300Hz |
>300Hz |
|
10 |
Maximum Operating Temperature |
135℃ |
160℃ |
185℃ |
|
11 |
Operating Voltage |
±(10~18)VDC |
||
|
12 |
Insulation Resistance |
50MΩ(@50VDC) |
||
|
13 |
Power Consumption |
<240mw@15V |
||
|
14 |
Current Consumption |
<10mA@15V |
||
|
15 |
Size |
Method Flange: 29.5mm×29.5mm×18.5mm; Circular Flange: φ28mm×18.5mm |
||
|
Note: After environmental tests such as vibration, temperature cycling, shock, and high-temperature storage, the repeatability of room-temperature testing. |
||||
