ZITN DC-DC Power Converter Module series are proprietary power modules developed by our company. Available in five standard brick sizes (1/32, 1/16, 1/8, 1/4, and 1/2 brick), they offer two operating temperature grades (T: -40℃ to +100℃ / M: -55℃ to +100℃), forming a comprehensive product portfolio.
Product Features
- Input Undervoltage Protection
- Output Overvoltage Protection
- Output Overcurrent Protection
- Output Short-Circuit Protection
Specification Parameters
Note: In the product models listed in the table below, the asterisk (*) represents the temperature grade, with two options available: Grade T and Grade M; the dot (·) in the product models represents the function, with two options available: Standard Function A and Parallel Function B.
|
1/32 Brick DC-DC Power Converter Module (Weight: 22g; Height: 12.7mm) |
|||||
|
Model |
Input Voltage |
Output Voltage |
Output Power |
Efficiency |
Dimension (mm) |
|
Z18T05*25SNA |
9-40V |
5V |
25W |
85% |
27.0 × 22.5 × 12.7 |
|
Z18T12*25SNA |
9-40V |
12V |
25W |
90% |
|
|
Z28T05*20SND |
16-40V |
5V |
20W |
82% |
|
|
Z28T15*20SND |
16-40V |
15V |
20W |
82% |
|
|
Z48T05*25SNA |
34-75V |
5V |
25W |
85% |
|
|
Z48T12*40SNA |
34-75V |
12V |
40W |
88% |
|
|
1/16 Brick DC-DC Power Converter Module(Weight: 35g; Height: 12.7mm) |
|||||
|
Model |
Input Voltage |
Output Voltage |
Output Power |
Efficiency |
Dimension (mm) |
|
Z18S3V3*50SNA |
9-40V |
3.3V |
50W |
90% |
36.8 × 26.7 × 12.7 |
|
Z18S05*50SNA |
9-40V |
5V |
50W |
91% |
|
|
Z18S12*50SNA |
9-40V |
12V |
50W |
91% |
|
|
Z18S15*50SNA |
9-40V |
15V |
50W |
90% |
|
|
Z18S24*50SNA |
9-40V |
24V |
50W |
90% |
|
|
Z18S28*50SNA |
9-40V |
28V |
50W |
90% |
|
|
Z28S3V3*50SNA |
16-40V |
3.3V |
50W |
90% |
|
|
Z28S05*80SNA |
16-40V |
5V |
80W |
91% |
|
|
Z28S12*80SNA |
16-40V |
12V |
80W |
92% |
|
|
Z28S15*80SNA |
16-40V |
15V |
80W |
91% |
|
|
Z28S24*80SNA |
16-40V |
24V |
80W |
90% |
|
|
Z28S28*80SNA |
16-40V |
28V |
80W |
90% |
|
|
Z28S50*60SNA |
16-40V |
50V |
60W |
91% |
|
|
Z48S05*80SNA |
34-75V |
5V |
80W |
90% |
|
|
1/8 Brick DC-DC Power Converter Module(Weight: 55g; Height: 12.7mm) |
|||||
|
Model |
Input Voltage |
Output Voltage |
Output Power |
Efficiency |
Dimension (mm) |
|
Z18E3V3*100NNA |
9-40V |
3.3V |
100W |
90% |
60.6 × 25.2 × 12.7 |
|
Z18E05* 120NNA |
9-40V |
5V |
120W |
90% |
|
|
Z18E12* 120NNA |
9-40V |
12V |
120W |
90% |
|
|
Z18E15* 120NNA |
9-40V |
15V |
120W |
90% |
|
|
Z18E19* 150NNA |
9-40V |
19V |
150W |
90% |
|
|
Z18E24* 120NNA |
9-40V |
24V |
120W |
90% |
|
|
Z18E28* 120NNA |
9-40V |
28V |
120W |
90% |
|
|

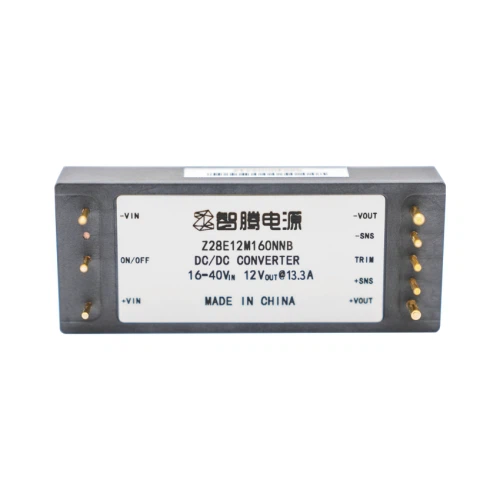

Z28E3V3*100NNA |
16-40V |
3.3V |
100W |
91% |
|
|
Z28E05* 160NNA |
16-40V |
5V |
160W |
92% |
|
|
Z28E12* 160NNA |
16-40V |
12V |
160W |
94% |
|
|
Z28E15* 160NNA |
16-40V |
15V |
160W |
92% |
|
|
Z28E24* 160NNA |
16-40V |
24V |
160W |
94% |
|
|
Z28E28* 160NNA |
16-40V |
28V |
160W |
94% |
|
|
Z28E50* 160NNA |
16-40V |
50V |
150W |
95% |
|
|
Z30E24* 100NNA |
16-50V |
24V |
100W |
92% |
|
|
Z48E3V3*100NNA |
34-75V |
3.3V |
100W |
90% |
|
|
Z48E05* 160NNA |
34-75V |
5V |
160W |
92% |
|
|
Z18E28* 15ANNC |
9-40V |
0-40V |
Output Current: 0-15A |
96% |
|
|
1/4 Brick DC-DC Power Converter Module(Weight: 90g; Height: 12.7mm) |
|||||
|
Model |
Input Voltage |
Output Voltage |
Output Power |
Efficiency |
Dimension (mm) |
|
Z28Q05*300NNA |
16-40V |
5V |
300W |
95% |
60.6 × 39.0 × 12.7 |
|

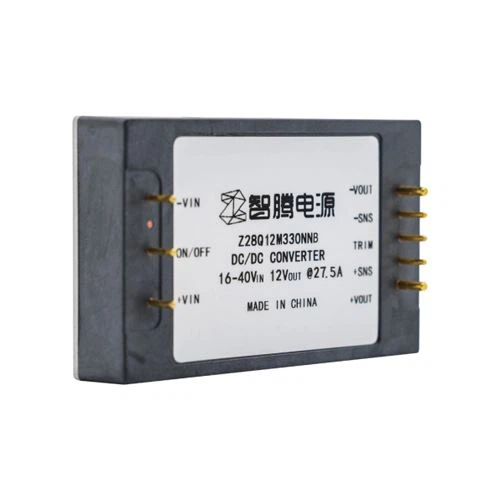

Z28Q12*330NNA |
16-40V |
12V |
330W |
95% |
|
|
Z28Q24*330NNA |
16-40V |
24V |
330W |
95% |
|
|
Z28Q28*330NNA |
16-40V |
28V |
330W |
95% |
|
|
Z28Q36*300NNA |
16-40V |
36V |
300W |
94% |
|
|
Z28Q50*300NNA |
16-40V |
50V |
300W |
94% |
|
|
Z40Q12* 150NNA |
16-40V |
12V |
150W |
92% |
|
|
Z300Q05*200NNA |
180-425V |
5V |
200W |
92% |
|
|
Z300Q06*250NNA |
180-425V |
6V |
250W |
93% |
|
|
Z300Q12*250NNA |
180-425V |
12V |
250W |
93% |
|
|
Z300Q15*250NNA |
180-425V |
15V |
250W |
93% |
|
|
Z300Q24*250NNA |
180-425V |
24V |
250W |
93% |
|
|
Z300Q28*250NNA |
180-425V |
28V |
250W |
93% |
|
|
Z300Q48*250NNA |
180-425V |
48V |
250W |
93% |
|
|
1/2 Brick DC-DC Power Converter Module(Weight: 150g; Height: 12.7mm) |
|||||
|
Model |
Input Voltage |
Output Voltage |
Output Power |
Efficiency |
Dimension (mm) |
|
Z18H24*300NN · |
9-40V |
24V |
300W |
92% |
60.6 × 63.2 × 12.7 |
|
Z24H12*700NN · |
18-36V |
12V |
700W |
95% |
|
|
Z24H24*700NN · |
18-36V |
24V |
700W |
95% |
|
|
Z24H28*700NN · |
18-36V |
28V |
700W |
96% |
|
|
Z28H12*600NN · |
16-40V |
12V |
600W |
95% |
|
|
Z28H24*600NN · |
16-40V |
24V |
600W |
95% |
|
|
Z28H28*600NN · |
16-40V |
28V |
600W |
96% |
|
|
Z28H36*500NN · |
16-40V |
36V |
500W |
95% |
|
|
Z28H50*500NN · |
16-40V |
50V |
500W |
95% |
|
|
Z40H12*600NN · |
16-70V |
12V |
600W |
94% |
|
|
Z300H05*350NN · |
180-425V |
5V |
350W |
92% |
|
|
Z300H12*500NN · |
180-425V |
12V |
500W |
94% |
|
|
Z300H24*500NN · |
180-425V |
24V |
500W |
94% |
|
|
Z300H28*500NN · |
180-425V |
28V |
500W |
95% |
|
|
Z300H36*500NN · |
180-425V |
36V |
500W |
95% |
|
|
Z300H48*500NN· |
180-425V |
48V |
500W |
94% |
|
