The surface system includes:
Surface Decoding Box: Decodes the encoded measurement data from downhole tools into recognizable parameters.
Programming and Testing Box: Programs the probe tube, downloads data, simulates the downhole state, and tests whether the entire tool operates normally.
Battery Testing/Activation Box: Tests battery functions and activates the battery.
Driller's Display: Displays the required drilling parameters on the drill floor.
Standpipe Pressure Sensor: Installed on the standpipe manifold of the drilling platform, it converts mud pressure signals into electrical signals.
Hook Load Sensor and Drawworks Sensor: The drawworks sensor records the angular displacement of the drawworks, which is combined with the weight measurement of the hook load sensor to measure the well depth.
Specification Parameters
|
Specification Parameters of Surface Decoding Box and Industrial Computer |
|
|
Operating Temperature Range |
-20~+60℃ |
|
Survival Temperature Range |
-40~+70℃ |
|
Specification Parameters of Sensors |
|
|
Pressure Transducer |
Interface type: Union type; Output signal: 4~20mA; Measuring range: 137MPa/20000psi, 40MPa/5800psi (customizable); Protection class: IP67; Intrinsically safe explosion-proof grade: Zone 2, Category II; Operating temperature range: -40~+85℃ |
|
Hook Load Sensor |
Output signal: 4~20mA; Measuring range: 42T; Intrinsically safe explosion-proof grade: Zone 2, Category II; Operating temperature range: -40~+85℃ |
|
Winch Sensor |
Output signal: 1~3mA; Measuring range: 1200rpm; Intrinsically safe explosion-proof grade: Zone 2, Category II; Operating temperature range: -40~+85℃ |
|

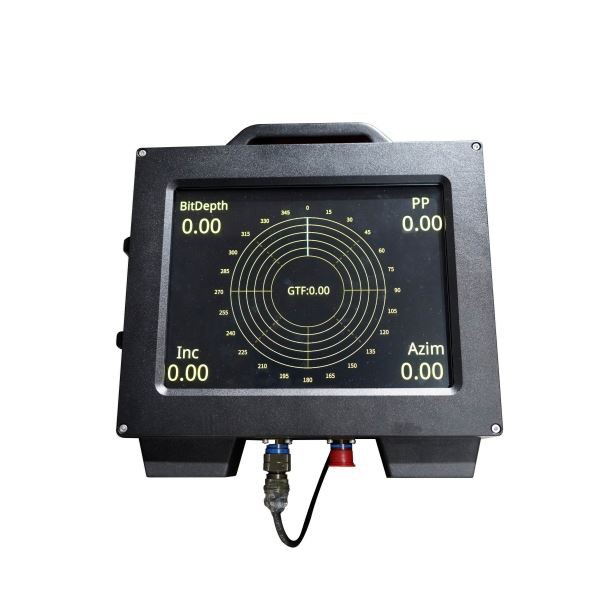

Parameters of Driller's Display |
|
|
Driller's Display Unit |
Screen: 12 inches; Intrinsically safe explosion-proof grade: Zone 1, Category II; Communication method: Wired; Operating temperature range: -40~+70℃; Survival temperature range: -40~+85℃ |
